Description

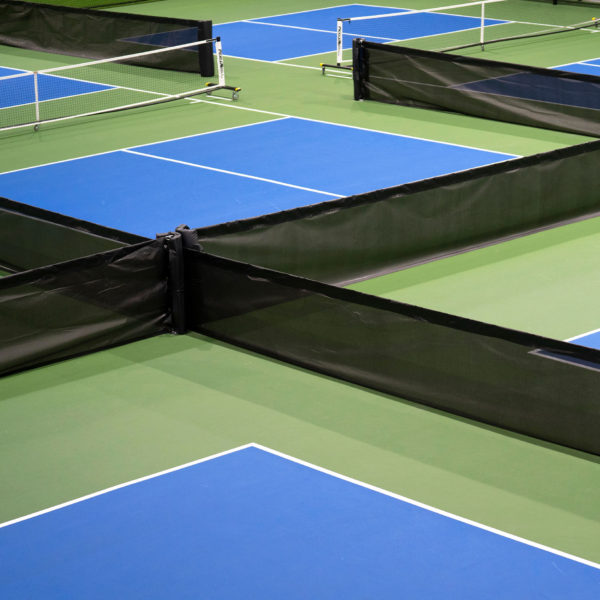

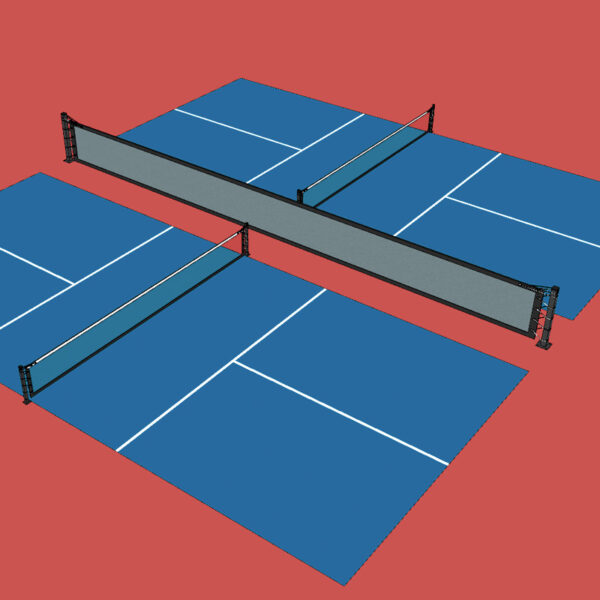

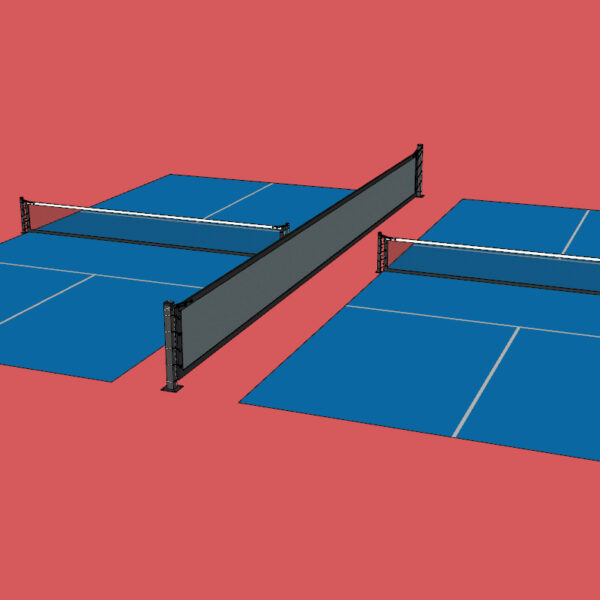

The ideal semi-permanent solution for facilities with existing concrete, this system utilizes a welded baseplate to bolt directly to the surface—providing maximum stability without the need for excavation. Each divider is custom-fabricated to your court’s exact specifications for a precision fit. Featuring 4’3” reinforced steel poles, the system can be finished with your choice of high-performance mesh windscreens or heavy-duty netting. While we recommend widths up to 40 feet, custom extended lengths are available. Crafted from premium, weather-resistant materials, these Douglas® barriers are engineered to excel in both indoor and outdoor environments.
QUICK SPECIFICATIONS
- Surface mount poles are 4’3″ in height
- 3″SQ poles are 11-gauge steel.
- Welded 7″ x 7″ baseplate with support gussets.
- Black baked-on powder coated finish.
- Complete with galvanized steel cable and hardware.
- Choose from windscreen or pylon netting divider panels.
- Maximum recommended panel length is 40.’
- Optional wraparound pole padding.
HARDWARE
The standard surface mount support poles are 3″ SQ and are 51” in height. Posts are welded to a 7” x 7” baseplate with support gussets. These surface mount square poles and hardware collars are constructed from 11-gauge steel and are finished with a black baked-on polyester powder coat to resist rust and increase durability.
All hardware components for the tension cable system are comprised of galvanized steel for maximum strength and longevity. Hardware includes ¼” cable, cable clamps, turnbuckles, and attachment components.
DIVIDER PANELS
Divider panels are custom fabricated from either VCP MAX windscreen mesh or from #420 knotless pylon netting. Both divider panel options are sewn with a top headband pocket that conceals all the tension hardware for an attractive finish with no exposed components. The sides and bottoms of the divider panels have reinforced tape borders that are double sewn with 1-1/2” solid vinyl and complete with #2 brass grommets spaced evenly for easy installation.
-
- VCP MAX Windscreen
-
- #420 Knotless Pylon

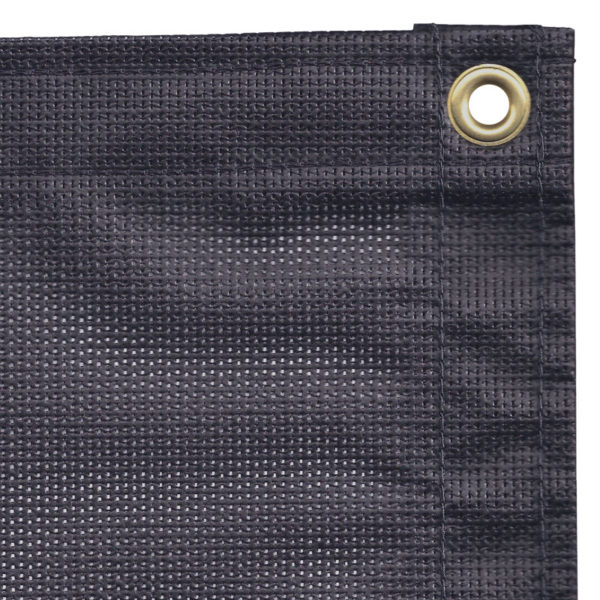

VCP MAX windscreen mesh material has a 4-year limited warranty and is available in black, dark green or open tournament blue. This mesh material offers a nice visual blockage and has an 85% windbreak. The material has great weather resistance and custom digital printing can be printed directly on the material. Added printing is a great opportunity to brand your facility or to add advertisements to support sponsors. VCP Max mesh material is most commonly used for indoor applications where wind stress is not a factor.

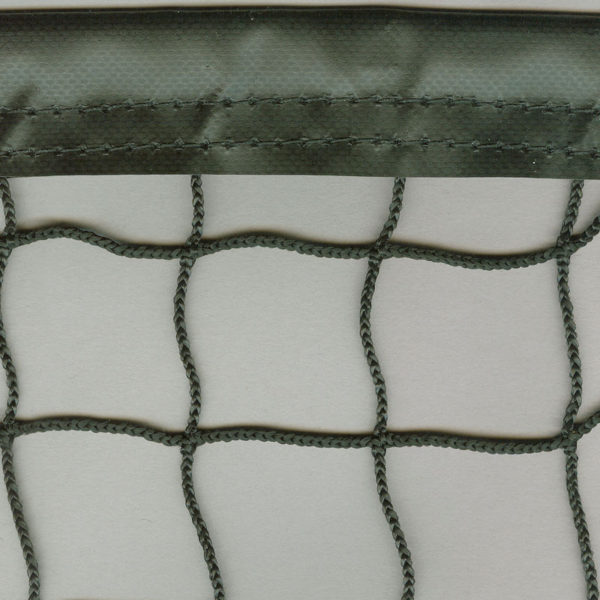

#420 Knotless Polypropylene (Pylon) is an ideal netting for court dividers. This lightweight, 1-1/2” square mesh boasts a 125# break strength and is completely weather treated to withstand the elements. Black knotless pylon is standard for pickleball court dividers but white is also available for indoor applications. Netting has a 4-year limited warranty. Pylon netting can be used both indoor and outdoor and is recommended for outdoor applications in lieu of mesh. The 1 ½” mesh will allow for ample wind flow reducing chance of material damage.
Every court is unique so please consult with one of our knowledgeable customer service representatives to discuss what options will work best for you! Please have your court dimensions ready before contacting us for a quote.
PROTECTIVE PADDING
The optional pole padding is aesthetically pleasing and is recommended for player safety. The standard wraparound pole pad is 4’ high and is 17” wide to completely wrap around the pole. The pad is secured around the pole with double stitched Velcro straps. The pole padding wrap is comprised of two-inch-thick high impact foam that is wrapped in all-weather vinyl that is mildew and UV resistant. Black padding is standard; additional available colors include forest green, royal blue, navy, and red.
Complete system includes poles, divider panel and tension hardware. Protective pole padding is optional.
Contact us for additional court configuration options add-on corner and center poles can be added to your court divider layout.
