Custom Made Divider Netting From Douglas Sports

Description

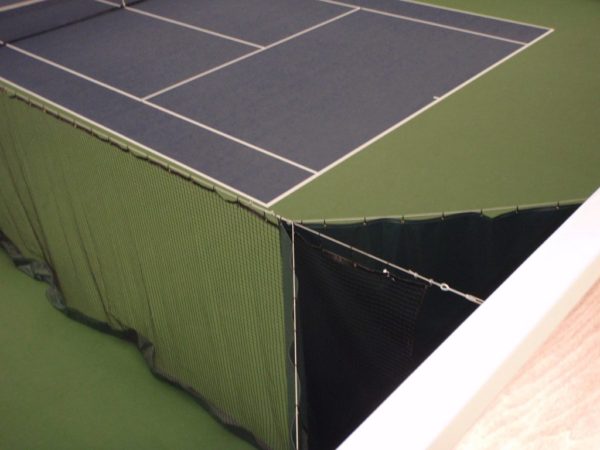

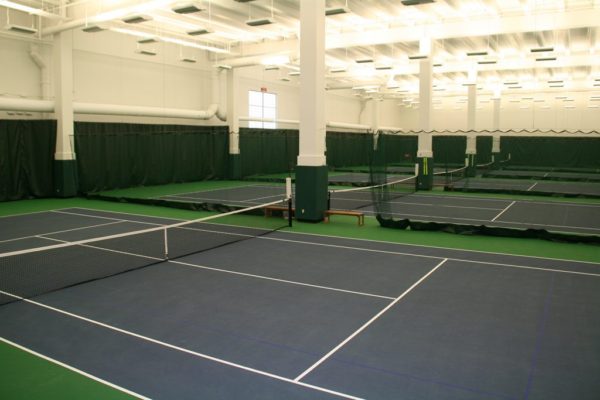

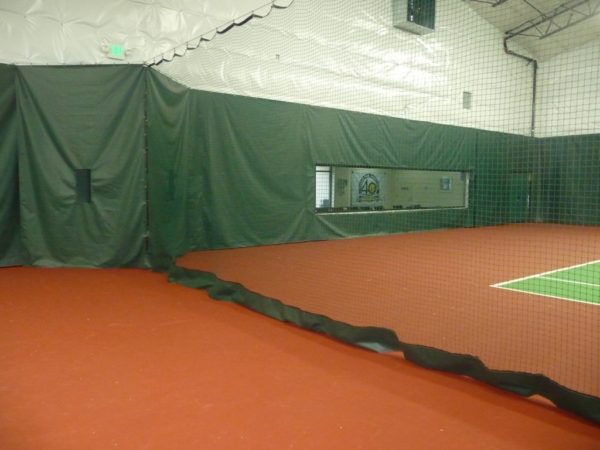

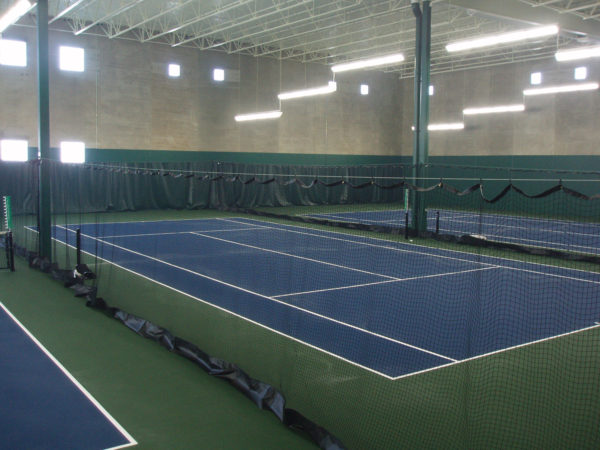

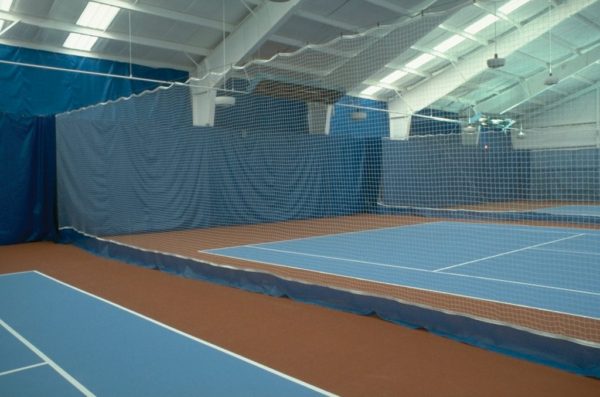

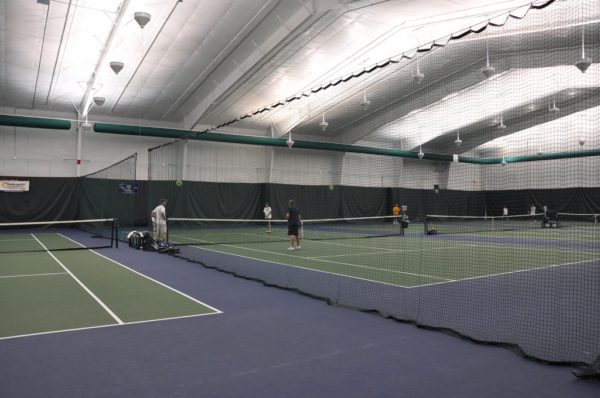

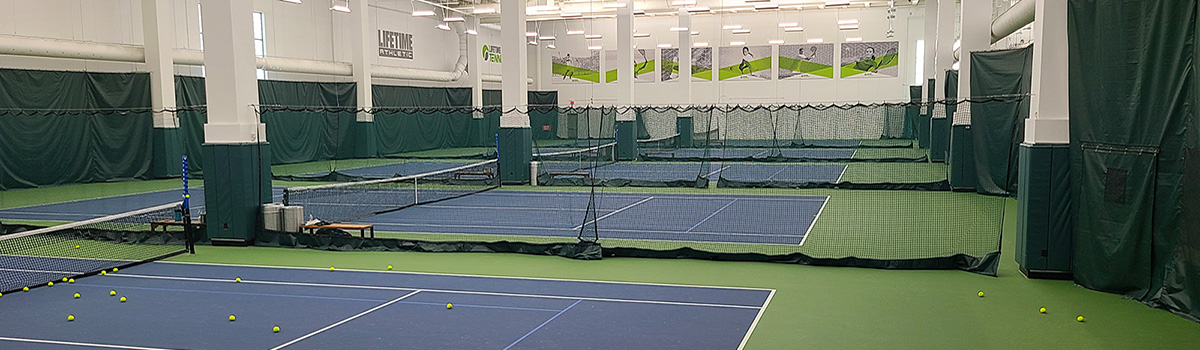

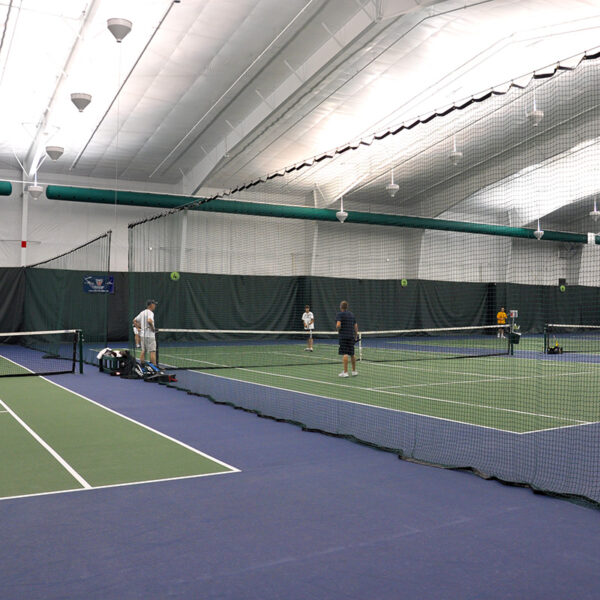

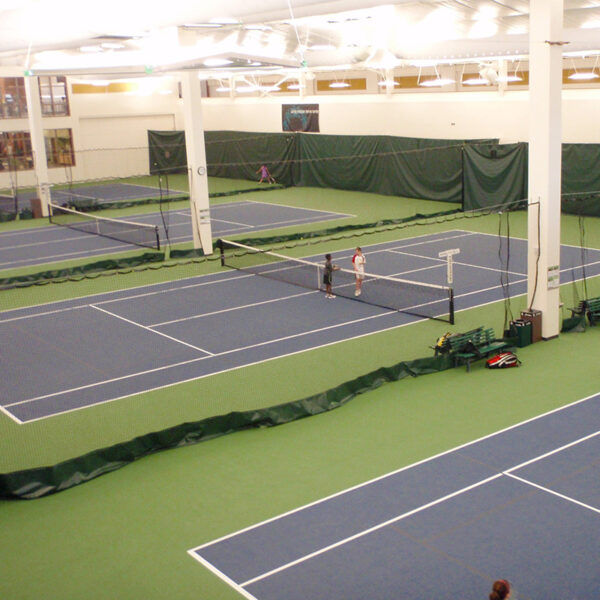

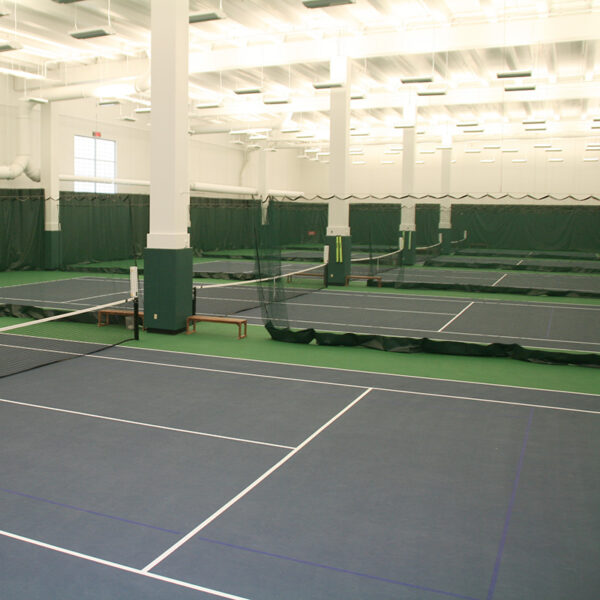

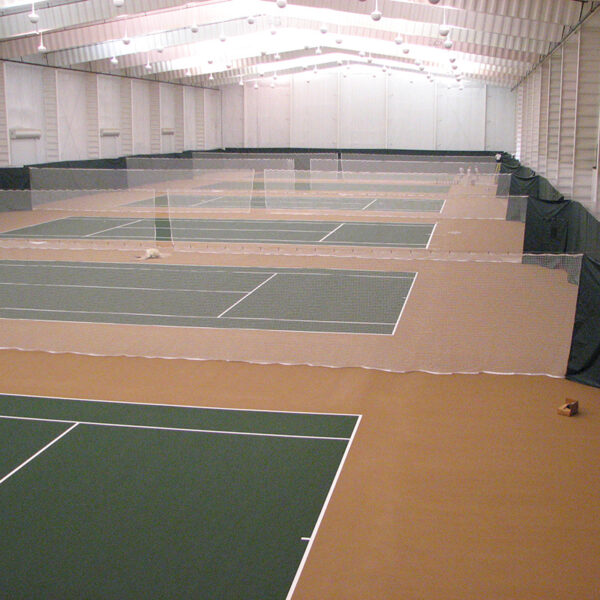

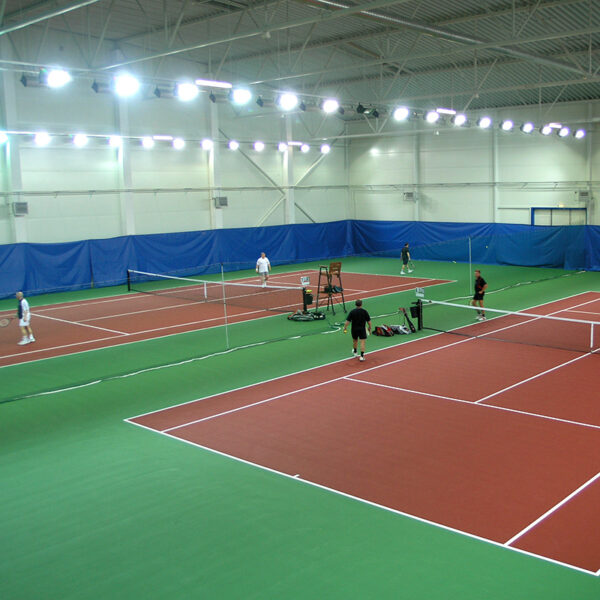

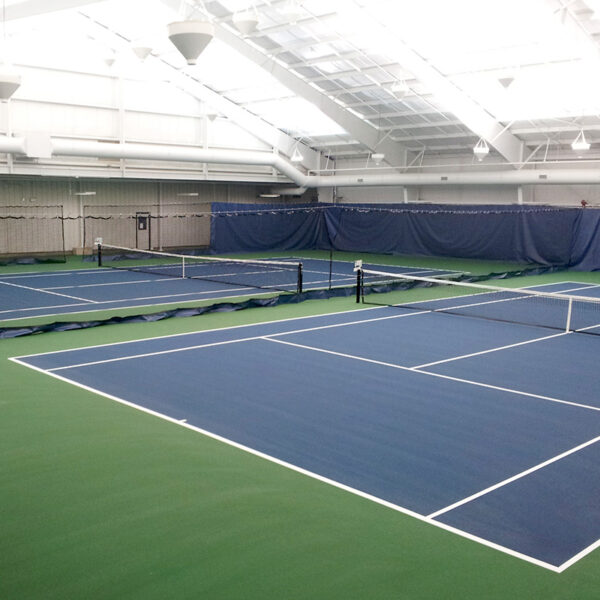

Create a barrier for better ball control between tennis, pickleball, and multi-sport facility courts while still allowing ventilation and uninterrupted play with Douglas® high-quality, USA-manufactured court divider netting. Court divider nets are made from knotless pylon and custom-fabricated to your facility’s required dimensions. We provide both indoor and outdoor court divider netting. Black netting is weather-treated to withstand moisture and sunlight. Natural white netting is for indoor use only.

Quick Specifications:

High-quality, USA-manufactured.
Ideal for tennis, pickleball, and multi-sport facilities (Indoor and Outdoor).
Netting Options:
- #420 Knotless Pylon: 1-1/2” square mesh, 125 lb. break strength (Black or White).
- Premium HTPP Polypropylene: 1-3/4” square mesh, 250 lb. break strength (Black or White).
Weather Resistance: Black netting is weather-treated for UV and moisture; White netting is for indoor use only.
Standard Heights: 10’ or 12’ (Custom heights available).
Borders are 1-1/2” double-sewn reinforced vinyl-coated polyester tape (Black or White).
Heavy-duty brass grommets are spaced every 18” along the top (Custom spacing available).
Standard indoor kickplates are 12″ high Solid Vinyl.
Outdoor bottom hem features a weighted leaded rope

Netting Material

Douglas standard court divider nets are custom-fabricated from knotless Pylon netting in 1-1/2” or 1-3/4” square mesh, available in white or black. Black netting is weather-treated to withstand moisture and sunlight, while white netting is for indoor use only. Kickplates are available for indoor application in either 12″ high Solid Vinyl or 18″ high mesh vinyl-coated polyester (VCP). Tape borders are double-sewn with 1-1/2 reinforced vinyl-coated polyester.

Standard Netting Options:

Black #420 Knotless Pylon, 1-1/2” square mesh, and has a 125 lb. break strength
White #420 Knotless Pylon, 1-1/2” square mesh, and has a 125 lb. break strength.
Black, Premium Knotless Polypropylene HTPP, 1-3/4” square mesh, 250 lb. break strength.
White, Premium Knotless Polypropylene HTPP, 1-3/4” square mesh, 250 lb. break strength.

: #420 Knotless Pylon

: #420 Knotless Pylon

: Knotless Polypropylene

: Knotless Polypropylene

Fabrication:

Divider curtain perimeters are finished with coordinating white or black 1-1/2” double-sewn vinyl tape borders. Heavy-duty brass grommets are evenly spaced every 18” along the top for easy attachment to a tension cable system. Custom grommet spacing is available upon request.

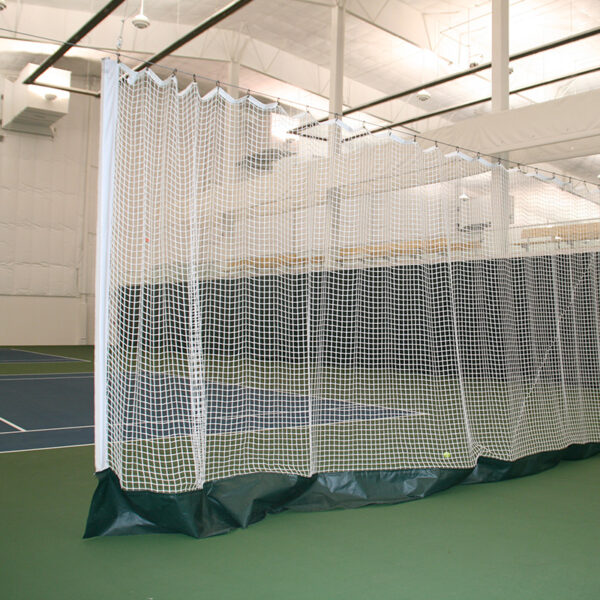

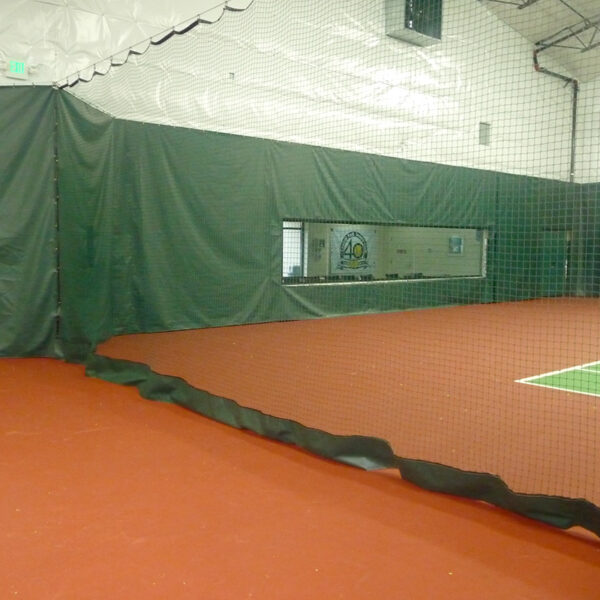

The bottom skirt or “Kickplate” will take the most abuse. The kickplates increase rigidity to prevent balls from sliding under the net and also extend the life of your court divider net. Kickplates are used for indoor applications and can be permanently sewn to the bottom hem or attached with Velcro.

Velcro attachment allows the kickplate to be replaced after years of use without replacing the entire netting panel. Standard kickplates are 12″ high in solid vinyl. Kickplates are also available in 18” high vinyl-coated polyester mesh (VCP) or in 24” high coordinated netting.

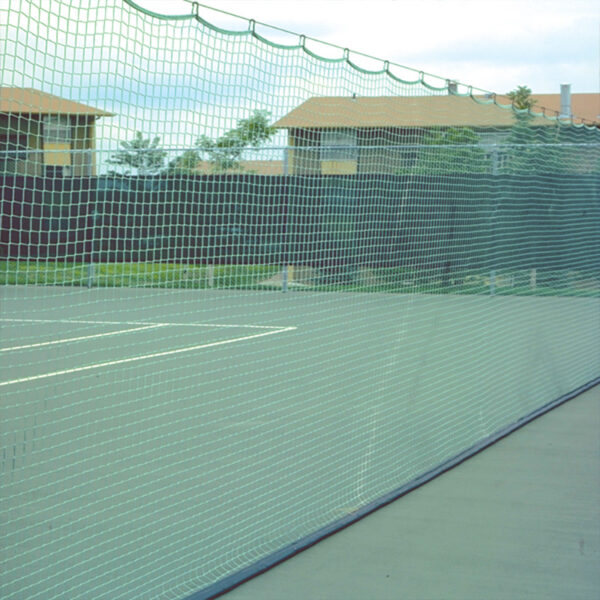

For outdoor applications, we finish the bottom hem with a weighted leaded rope encased in the black double-sewn tape border. This ensures the netting remains stable and vertically even in windy conditions.

Dimensions

Standard tennis court divider nets are 10’ or 12’ high, and custom heights are available.

The overall length of the court divider nets should be the length of the court at 120’. For easier handling and storage, the court divider nets can be divided into two 60’ sections or custom sections based on your facility or preference. We recommend adding some length to each net to account for natural bunching when hung – please discuss with one of our representatives to ensure best possible fit.

Available Colors

Most divider nets are constructed with black, dark green, or open blue vinyl kickplates, but any color of our 18 oz. Vinyl (shown below) or VCP mesh can be used to coordinate with your facility. The top and side perimeter hems are only constructed using 1-1/2” black or white vinyl tape borders.

18 oz. FR Vinyl

- 18 oz. heavy-duty vinyl-coated polyester
- UV-treated and fade-resistant.
- Child safe CPSIA (H.R. 404) compliance.
- Available Colors: Dark Green, Open Blue, Black, Green, Royal Blue, Navy, Champion Blue, Light Blue, Red, Burgundy, Purple, White, Gray, Tan, Yellow, and Orange. Other colors available by request.

Color Options
