Description
Douglas® Guard Rail Padding can be used for a variety of applications on sports fields including dugout padding and equipment padding. Padding helps to prevent dangerous ricochets, provides player comfort, and enhances the look of any facility for a more professional feel. Guard rail pads are easy-to-order and even easier to install.
Specifications
- Core Construction:
- Foam: 1” thick prime polyurethane high-density foam (100+ ILD).
- Design: Wraparound style for high-impact cushioning and player comfort.
- Covering:
- Heavy-duty 18 oz vinyl casing with UV and weather protection coating.
- Edging:5” wide perimeter vinyl flap, double-sewn with high tensile strength thread.
- Designed for long-term resistance against the elements.
- Dimensions:
- Maximum Length: 10’ per piece (sold per linear foot).
- Standard Fit: Fits up to a 2” diameter pipe (custom diameters available).
- Installation System:
- Hardware: Heavy-duty #2 brass grommets spaced every 6”.
- Method: Typically installed with UV-protected tie wraps or lacing cord (sold separately).
- Application: Ideal for dugout rails, equipment padding, and preventing ricochets.
- Color & Graphics:
- Standard Colors: Dark Green, Black, Royal Blue, Navy, Red, Maroon, Purple, Gray, and Yellow.
- Digital Printing: Vibrant UV digital printing directly on vinyl; resists cracking and peeling.
- Options: Full pad or front-face only printing (3”–4” recommended height); logo wraps available.
- Compliance & Certifications: Meets requirements for NFHS, NCAA, and ASBA.
- Warranty: Backed by the Douglas® Standard Limited Warranty.
Quality Materials
Douglas® guard rail pads are a wraparound style that are custom fabricated using 1” thick high-density foam cores. Foam is 1” prime polyurethane 100+ ILD for ample cushioning protection. Foam is encased in durable 18 oz vinyl that has a UV and weather protection coating for long term resistance against the elements. Choose from standard colors dark green, black, royal blue, navy, red, maroon, purple, gray, and yellow. Additional colors are available by request.
-
- Dark Green
-
- Black
-
- Royal Blue
-
- Navy
-
- Red
-
- Maroon
-
- Purple
-
- Gray
-
- Yellow
Finished Size
Guard rail pads are sold up to a maximum of 10’ in length per piece and are sold per linear foot. Perimeter vinyl flap edging is 1.5” wide and is double sewn with a high tensile strength thread. Heavy duty #2 brass grommets spaced every 6“ for a secure installation. Standard size pads are manufactured to fit up to a 2” diameter pipe. Dugout guard rail padding is typically installed with UV protected tie raps or lacing cord, sold separately. Custom sizes are available to fit any diameter pipe – additional fees may apply.
Graphics – Vibrant Full Color Digital Printing

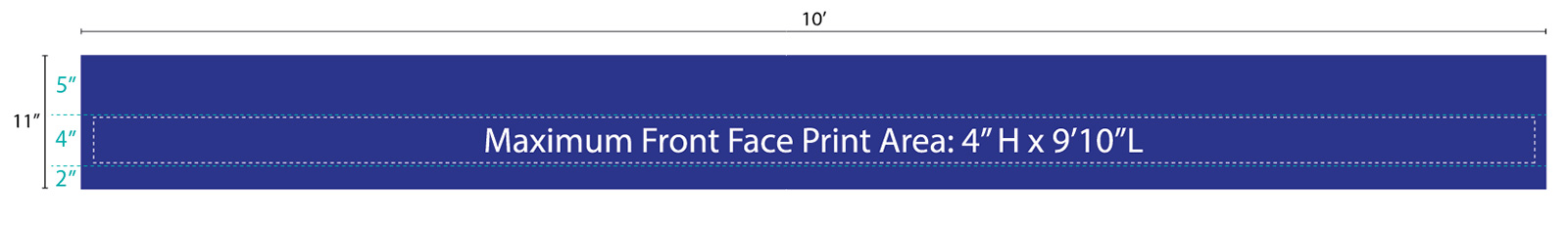

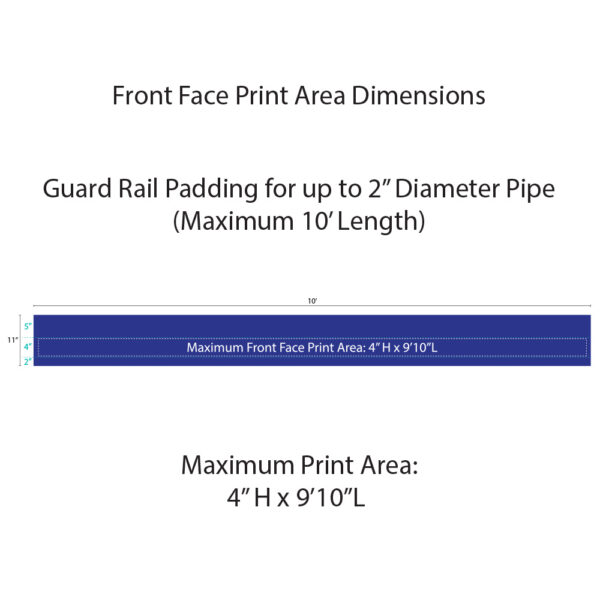

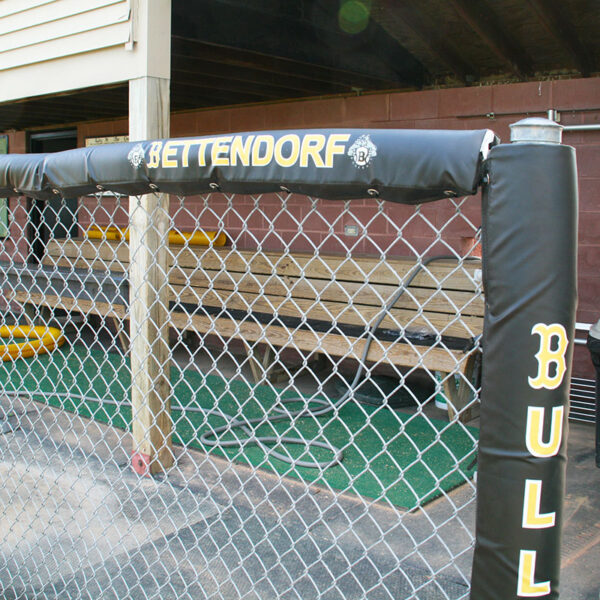

Add digital printing with our high-quality UV digital printing process. You can choose to print on the entire pad or just the front face of the pad to advertise your team’s name or logo. Recommended front face print area height is only 3”- 4”. Our elite printing process allows us to print directly on our vinyl providing crisp, clear images. Your graphics will be UV resistant and become part of the material; your investment will not crack or peel. Dugout Vinyl Logo wraps are also available to update the appearance of your existing padding. Our digital printing offers more detailed multi-color capabilities and has a quick turnaround!
Specifications
Douglas® protective padding meet specific requirements from the NFHS, NCAA, and the ASBA.
Warranty
Backed by Douglas® Standard Limited Warranty
Custom Dugout Protective Netting
Baseball Dugout Guard Rail Pads can be paired with custom netting to enclose the dugout area and increase player safety. Browse our baseball custom netting options and contact us with your dimensions for a personalized quote.
