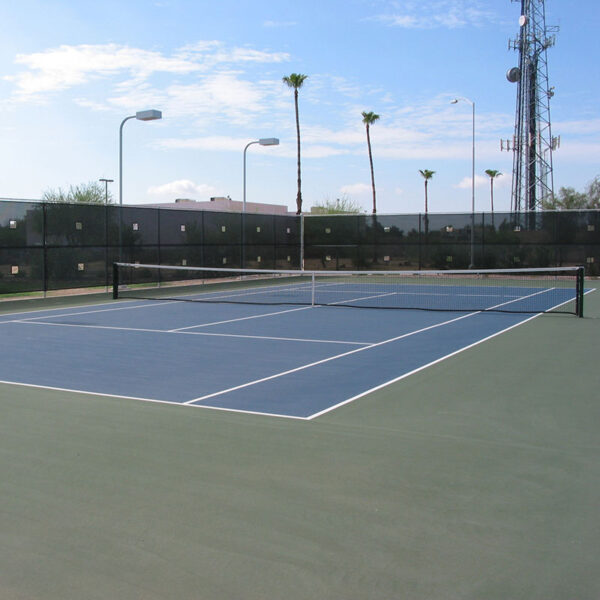

Double Air Vent Windscreen

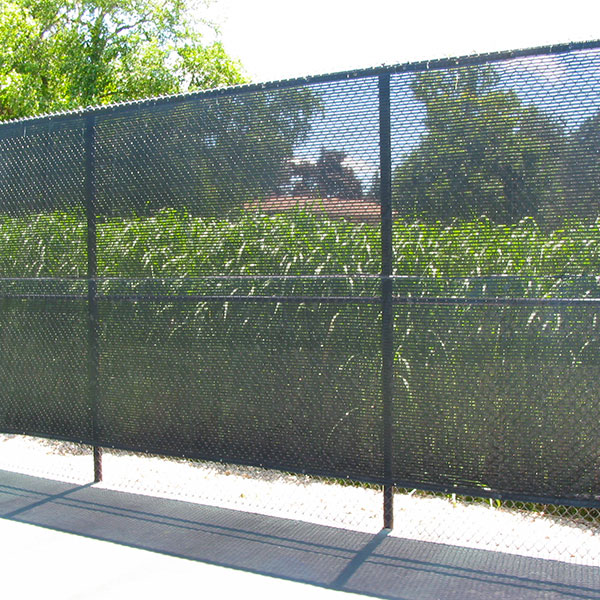

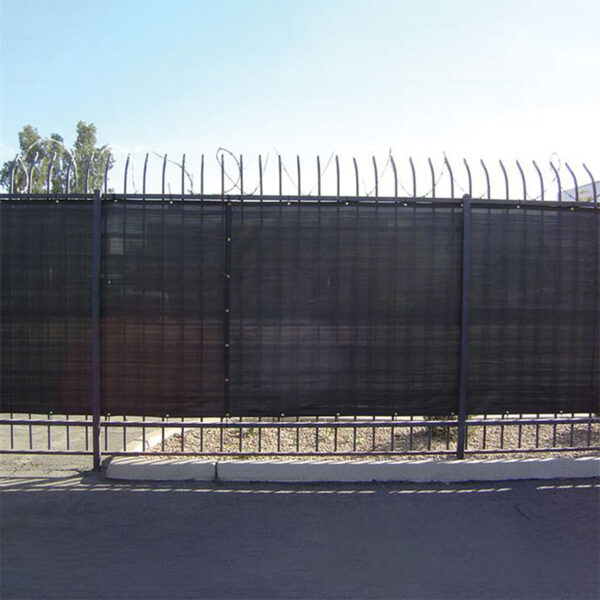

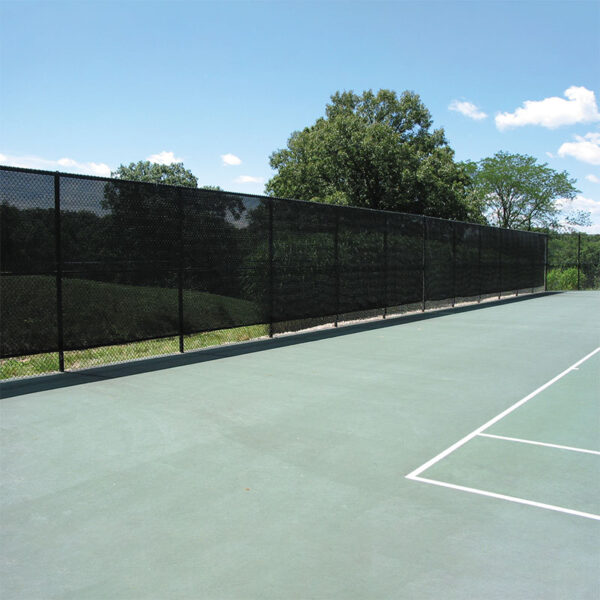

Poly Pro Plus Closed Windscreen

Douglas® Poly Pro™ Plus Premium Closed Mesh Screen

UV Protected Professional Grade Polypropylene Screen

Description

This 100% Polypropylene closed mesh material is a professional grade material that offers a 95% blockage for maximum privacy.

PolyPro Plus is a highly durable leno weave material that is heat-set so your screens will never shrink or change shape. Weather and UV protection is extruded into every fiber of the Polypropylene windscreen for maximum performance and longevity.

Windscreens are available in standard 6 ft and 9 ft heights and in custom heights by quotation. Any screen length is available; however, 60 ft is the maximum recommended length per panel.


Extra Strong Hems
PolyPro Plus windscreen material is hemmed with Douglas’s 3-ply extra-strong hems. These durable hems are seemed with solid vinyl inserts that are double sewn to 1-1/2 inches wide. The #2 brass grommets are spaced every 12 inches on panel sides and every 18 inches along the top and bottom.


Center Reinforcement
When installing windscreens, center reinforcement is recommended for anti-billowing on all panels that are taller than 6 ft where strong winds prevail. Center reinforcement allows the screen to be secured to the middle of the fence with a simple lacing cord attachment. All Sport Screens by Douglas® over 6 ft in height include a center tab with grommets. Center tabs on PolyPro Plus are double stitched with 3 inch wide heavy polyester webbing and grommets are placed every 18 inches to secure the screen to the fence. The center tab grommets are only placed on the webbing and do not go through the fence screen material. This results in a cleaner installed appearance with no visible grommets on the front side of the material.


Air Vents
Optional air vents allow air to pass through and help take the strain off your fence and windscreen. For closed mesh fabric, air vents are recommended especially where high winds prevail. The Douglas® PolyPro Plus Closed mesh is only available with AVR style air vents. AVR’s are rectangular sewn cut outs that measure 8 inches wide by 10 inches high. These vents are perimeter hemmed with polyester webbing and are placed at 10 ft intervals on center.


PolyPro™ Plus Closed Mesh Material Specifications:

Fabric: 30 x 16 leno weave
Windbreak: 95%
Weight per sq yard: 8 oz.
Tensile Strength: 450 x 215
Colors: Dark Green or Black
Warranty: 4 Year Limited Warranty

Additional Information

TypeFile
LiteratureDouglas_Pickleball_19.pdf
LiteratureDouglas-Windscreen-19.pdf
Installation InstructionsDouglas-Install-Windscreens.pdf
CAD Drawings2763-014-Douglas-Industries-Inc.-Douglas®-Poly-Pro™-Plus-Premium-CMP-Closed-Mesh.pdf
Bid SpecsDouglas-Spec-CMP-Closed-Mesh-Poly-Pro-Plus-Premium-Windscreen.pdf
